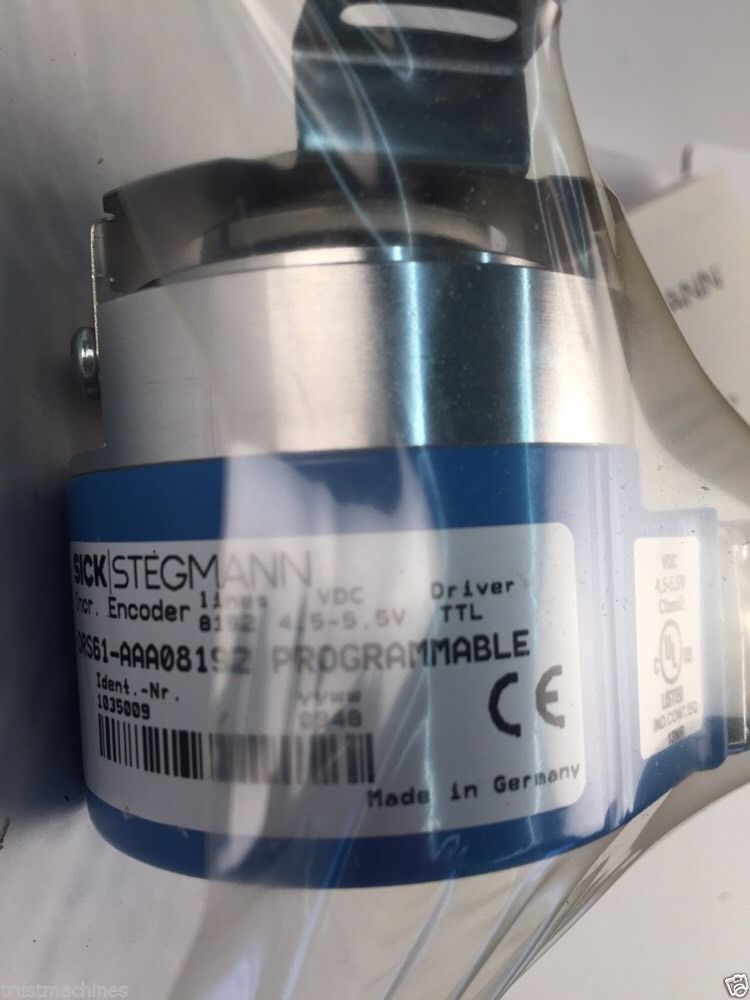

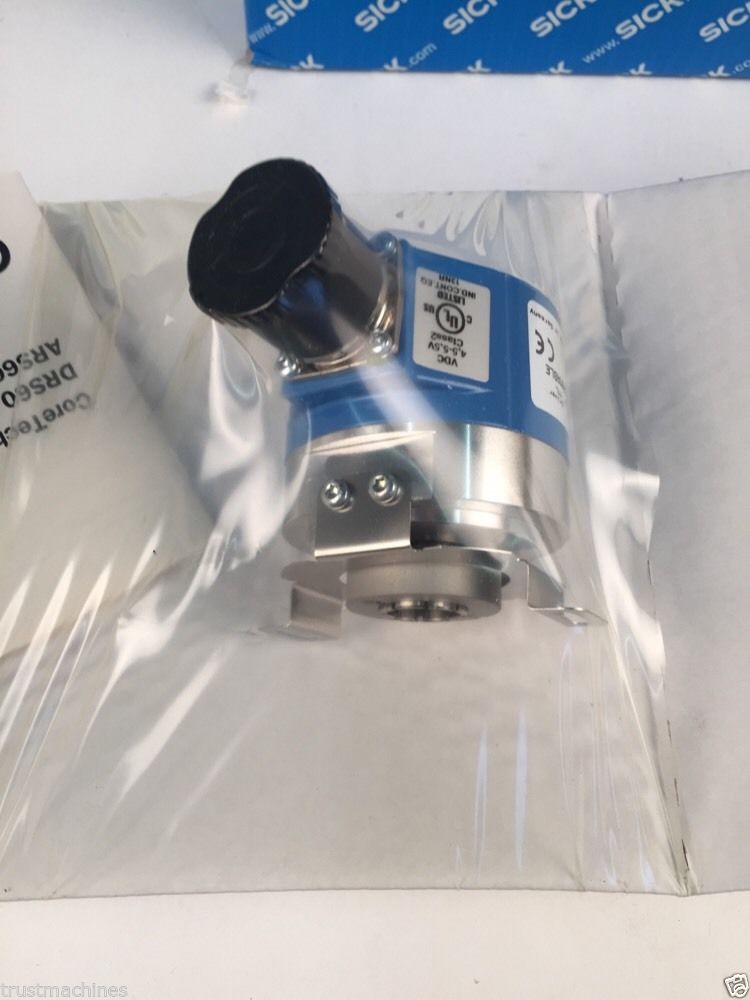

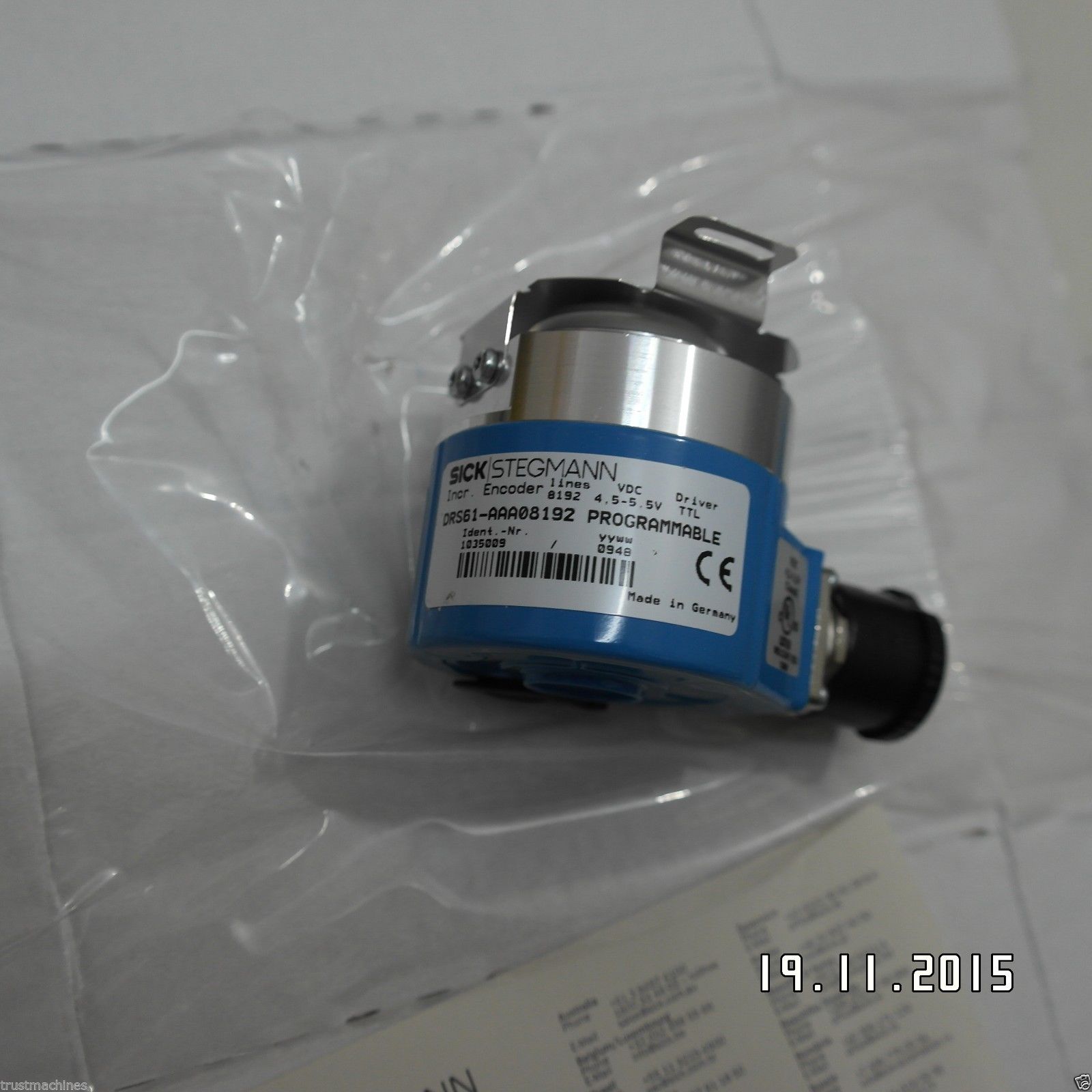

for sale is One Quantity of : sick stegmann
incr. encoder 8192 TTL 5vDC
DRS61-AAA08192 programmable
Indent. Nr. 1035009
---------WE also have in STock SICK Stegmann Dubai Stock 1035342 PGT-05-S DRS61 PROGRAMMING TOOL for Programming this Encoder. You could buy the Programming tool or ask us to program the Encoder @ additional Charge------
| Mechanical data | |
| Shaft diameter: | 15 mm 1/2 " |
| Moment of inertia of the rotor: | see figure |
| Max. angular acceleration: | 5 x 10^5 rad/s2 |
| Start up torque: | 0.6 Ncm (20 °C) |
| Operating torque: | 0.4 Ncm (20 °C) |
| Operation of zero-set: | ≥ 100 ms 1) |
| Mechanical interface: | Blind hollow shaft |
| Mass: | 0.3 kg (for an encoder with connector outlet) |
| Bearing lifetime: | 3.6 x 10^9 revolutions |
| Permissible movement axial static/dynamic: | ± 0.5 mm, ± 0.2 mm |
| Permissible movement radial static/dynamic: | ± 0.3 mm, ± 0.1 mm |
| Maximum operating speed: | 3,000 1/min |
| 1) Only with shaft stationary | |
| Electrical data | |
| Connection type: | Connector, M23, 12-pin, radial |
| Reference signal, number: | 1 |
| Reference signal, position: | 90 °, electronically, gated with A and B 180 °, electronically, gated with A and B |
| Electrical interface: | 4.5 V ... 5.5 V, TTL/RS422 |
| Operating power consumption (no load): | 120 mA |
| Supply voltage: | 4.5 V ... 5.5 V |
| Load current: | 20 mA |
| Maximum output frequency: | 820 Hz |
| Zero pulse width: | Freely programmable |
| Ambient data | |
| Resistance to shocks: | 50 g, 11 ms (EN 60068-2-27) |
| Resistance to vibration: | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
| EMC: | EN 61000-6-2, EN 61000-6-3 |
| Protection class housing side with connector outlet: | IP 65 1) |
| Protection class housing side with cable outlet: | IP 66 |
| Protection class shaft side: | IP 65 |
| Protection class standard: | IEC 60529 |
| Air humidity: | 90 % 2) |
| Working temperature range: | -20 °C ... 85 °C |
| Storage temperature range: | -40 °C ... 100 °C, without package |
| 1) With mating connector fitted 2) Condensation of the optical scanning not permitted | |
| System data | |
| Measuring step: | 90 °, electronically/number of lines |
| Number of lines per revolution: | 8,192 1) |
| Error limits binary number of lines: | 0.035 ° |
| Error limits non-binary number of lines: | 0.046 ° |
| Measuring step deviation at binary number of lines: | 0.005 ° |
| Measuring step deviation at non binary number of lines: | 0.016 ° |
| Initialization time: | 40 ms |
| 1) Number of lines 8,192 factory- programmed. | |
---------------
