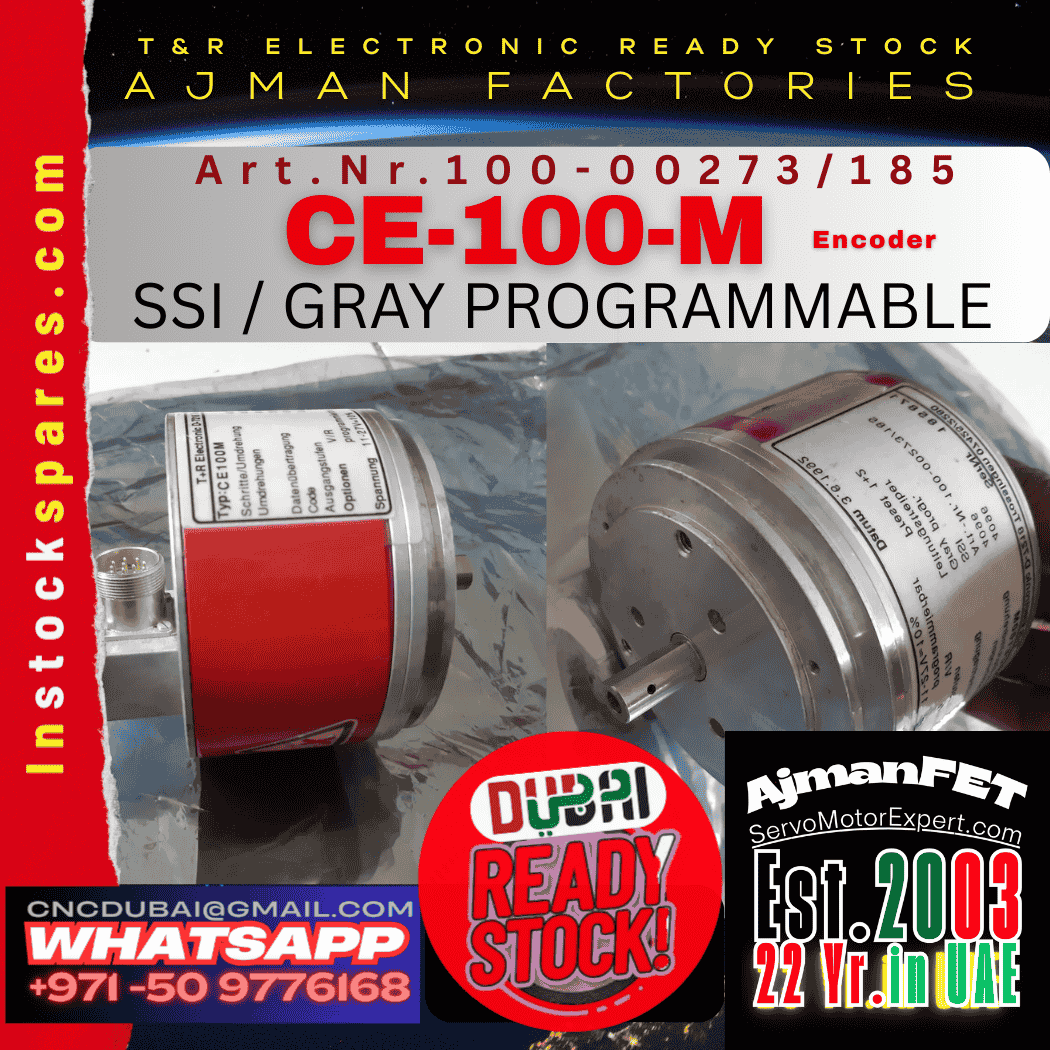

T+R Encoder 24 Bit Programmable ABsolute Encoder CE-100-M CE-1OO-M CE 100M CE 1OOM CE100M Grey 100-00273/185

T+R Encoder Dubai CE-100-M CE-1OO-M CE 100M CE 1OOM CE100M Grey 100-00273/185

Absolute/Multi Turn-4096x4096/11-27Vdc/Shafted=14x23.75/

Steps / Revolution=4096Revolutions: 4096; GRAY-SSI

Location diameter: 100 PCD of holes:85 Encoder dia : 106

for sale is One Quantity of :

T+R Electronic CE-100-M ; CE-1OO-M ; CE 100M CE 1OOM CE100M CE1OOM 4096 Umdrehungen Drehgeber Encoder

Art. Nr. 100-00273/185

SSI / Gray programmable Option: VR preset 1+2 ; 11-27Volts

Absolute rotary programmable multi turn

100 mm dia. encoder

24 bit (4096 steps x 4096 rev) resolution

---------------

This Item is In Our OWN Stock@Ajman near Dubai in United Arab Emirates.

---------------

General CE 100M technical data ...from Operation Manual

4 Technical data

4.1 Electrical ratings

Operating voltage: ..................................................... 11-27 V DC (+/- 5% residual ripple)

Max. current consumption:....................................... < 350 mA at 11 V DC, < 150 mA at 27 V DC

Output capacity: ........................................................ Max. 25 bits

Resolution: ................................................................. Max. 8192 increments per revolution (13 bits)

Measuring range: ....................................................... 4096 revolutions (12 bits)

Output code: .............................................................. Binary

Baud rate: ................................................................... 12 Mbps

Encoder interface: ..................................................... PROFIBUS-DP acc. to DIN 19245 Part 1-3

Special features: ........................................................ Programming is performed via the parameterization

message at the start-up of the encoder or PROFIBUSDP

master

SSI-OUT data interface

Clock input: ............................................. Optocoupler

Data output: ............................................ RS422 (2-wire)

Clock rate: ............................................... 80 kHz - 1MHz

Code: ...................................................... Programmable, left-justified

Operating temperature range: .................................. 0 to +60 °C

4.2 Mechanical ratings

Mechanically permissible speed: ............................. 6000 rpm

Permissible shaft load: ............................................. 40 N axial, 60 N radial (at end of shaft)

Minimum bearing lifetime: ........................................ 3.9 x 1010 revolutions at:

Operating speed: ............................................ 3000 rpm

Shaft loading: .................................................. 20 N axial, 30 N radial (at end of shaft)

Operating temperature: ................................... 60 °C

Max. angular acceleration: .......................................  104 rad/s2

Moment of inertia: ..................................................... 2.5 x 10-6 kg m2

Starting torque at 20 °C: ........................................... 2 Ncm

Vibration loading (50-2000Hz): .................................  100 m/s2

Shock loading (11 ms): .............................................  1000 m/s2

---------------

You are welcome to make an Offer for the item. Most Reasonable offers are Accepted. Payment required within 4 Days - Only Serious buyers Please.

--------------

We Ship UPS Saver Expedited - same or Next day.(Reaches USA in 3-4 days)

Buyer is responsible for Paying any Local Duty/ Taxes/ Custom Clearance in their country.

Dubai is one of the Most Connected city in The world. Dubai as our Shipping Hub, We take Pride in delivering anywhere in the World faster then anyone else can

---------------

This Item is In Our OWN Stock at "Ajman City" near Dubai in United Arab Emirates. If you want you can collect it right away on your UPS account or send someone over to our office (collection possible even on "Weekends and after office hours")

-----------------------

Please note :  The part described as per pictures is for Sale If you need Higher resolution pictures from another angle or from a specific area of the part do ask. Do not assume and ask for more information. We would try to provide the information to help you make an Informed purchase decision.

PHOTOS are given for all units available....but the Price is for EACH... if you want to buy more units.. increase quantity while ordering

We sell as per picture ; all other information/data including Specifciations etc. is provided without obligation. We have gathered the information from the Label at the packet and from Internet. This may or may not be correct. Research yourself be
