Dubai ARS60-AAA08192 | 1031458 | ARS 60-AAA08192 | 103 1 458 | ARS60AAA08192 | ARS6O
ARS 60 ENCODER SICK ARS60-AAA08192 |1031458 USA Fast Delivery | Dubai Stock
With shipment Self pick-up or Collect DHLFedexUPS for $0.00
Units in box: 1

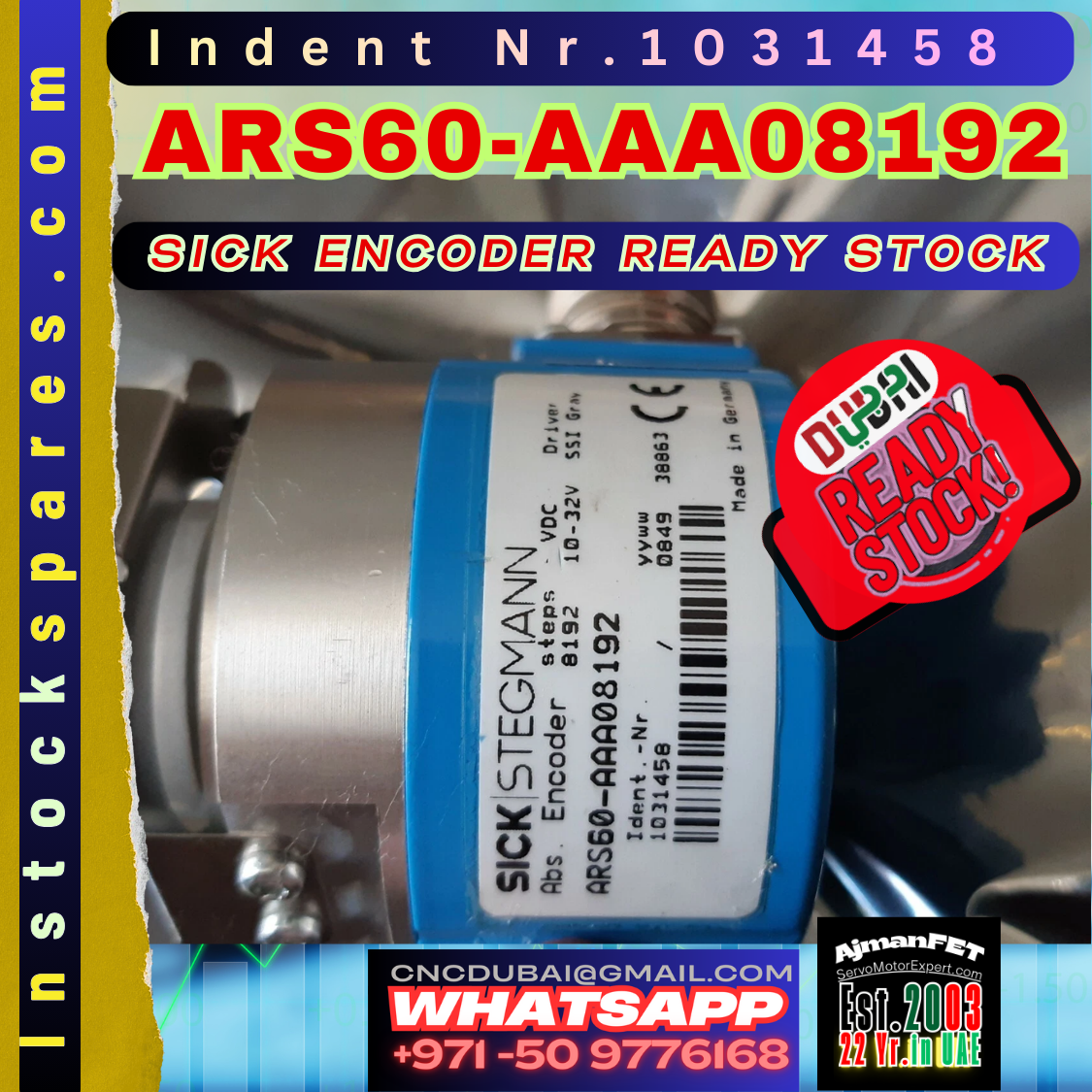

ARS60-AAA08192 ABSOLUTE ENCODER SINGLETURN 08192 Steps, 32V / SSI - Gray
SINGLETURN 08192 Steps, 32V / SSI - Gray,Blind hollow shaft 15mm Hollowx30 mm deep blind-
we get this more information from internt:
Sick ARS60-AAA08192 (1031458) Overview
ARS60-AAA08192 ABSOLUTE ENCODER SINGLETURN 08192 Steps, 32V / SSI - Gray
=================
"
" Why Buy From Us?
- Ready stock in Dubai (UAE)
- Same day dispatch on available items
- Worldwide shipping (Express options)
- Technical support & troubleshooting assistance
- Field service support available
- Trusted industrial supplier since 2003
Frequently Asked Questions
Is this ;ARS 60-AAA08192;103 1 458 available in stock?
Yes. This ;ARS 60-AAA08192;103 1 458 is currently Ready Stock in Dubai.
Do you ship internationally?
Yes. We ship worldwide with express courier options.
Can you support installation or troubleshooting?
Yes. Technical support and field service options are available upon request.
Can I get equivalent or upgraded model?
Yes. Contact us for compatibility verification and upgrade options.
Sick ARS60-AAA08192 (1031458) Description
- Absolute singleturn encoder
- Resolution: up to 15 bits (32,768 increments)
- Electrical interface: SSI with gray code type or gray capped
- Electrical interface: Parallel with gray, gray capped, binary, BCD code type
- Zero-set function
- Mechanical interfaces: face mount flange, servo flange, blind and through hollow shaft
- Enclosure rating: Up to IP66
Your benefits
- Optical and magnetic variants for the widest range of requirements
- Reduced maintenance costs thanks to magnetic, wearless scanning in single and multiturn design
- High level of productivity due to optical encoders with a high level of precision and fast calculation of positions
- Robust design for maximum system availability, even in extreme environmental conditions
- Absolutely compact - specially suited in cases where installation space is tight
- Flexible integration in all common networks
| Performance | |
| Max. number of steps per revolution: | 8,192 |
| Max. number of revolutions: | 1 |
| Resolution power: | 8,192 x 1 |
| Error limits: | 0.035 ° (binary number of steps) 0.046 ° (non-binary number of steps) |
| Repeat accuracy: | 0.005 ° |
| Measuring step deviation: | 0.005 °, 0.016 ° |
| Measuring step: | 360 ° /number of lines |
| Initialization time: | 80 ms 1) |
| 1) Valid positional data can be read once this time has elapsed | |
| Mechanical data | |
| Mechanical interface: | Blind hollow shaft |
| Shaft diameter: | 6 mm 8 mm 10 mm 12 mm 14 mm 15 mm 1/4 " 3/8 " 1/2 " 1) |
| Mass: | 0.3 kg |
| Start up torque: | 0.6 Ncm |
| Operating torque: | 0.4 Ncm |
| Maximum operating speed: | 3,000 /min |
| Bearing lifetime: | 3.6 x 10^9 revolutions |
| Max. angular acceleration: | 500,000 rad/s² |
| Permissible movement axial static/dynamic: | ± 0.5 mm, ± 0.2 mm |
| Permissible movement radial static/dynamic: | ± 0.3 mm, ± 0.1 mm |
| Operation of zero-set: | ≥ 100 ms 2) |
| 1) Collets for 6, 8, 10, 12, 14 mm and 1/4 ", 3/8 " and 1/2 " as accessories, separate order item. For 15 mm shaft diameter collet is not needed. 2) Only with shaft stationary (note initialisation time) | |
| Electrical data | |
| Operating voltage range: | 10 V DC ... 32 V DC |
| Operating power consumption (no load): | 60 mA |
| MTTFd: mean time to dangerous failure: | 300 a (EN ISO 13849-1) 1) |
| 1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. |
|
| Interfaces | |
| Electrical interface: | Connector M23, 12-pin, radial |
| Ambient data | |
| EMC: | (according to EN 61000-6-2 and EN 61000-6-3) 1) |
| Enclosure rating: | IP 65 (according to IEC 60529), with mating connector fitted |
| Permissible relative humidity: | 90 % (condensation of the optical scanning not permitted) |
| Working temperature range: | -20 °C ... 85 °C |
| Storage temperature range: | -40 °C ... 100 °C |
| Resistance to shocks: | 50 g (according to EN 60068-2-27) |
| Resistance to vibration: | 20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6) |
| 1) |
|
------------------------
Many listed items are available from Dubai / UAE stock. Availability is subject to prior sale, so please contact us by WhatsApp, phone, or email to confirm current stock before ordering. Yes. We stock and ship industrial automation spare parts worldwide using express courier options. Yes. Technical support and field service options are available for purchased items upon request. Yes. Contact us with your part number, machine details, or photos, and we will help check compatibility, replacement options, or upgraded models. Yes, where possible. Please contact us as soon as possible with your order details. We will assist based on the order status, packing status, and shipment status. Returns or exchanges may be possible depending on the product type, condition, and order terms. Please review our return policy or contact our team before ordering if you need confirmation. ""
Applications
Common Field of Applications: Measurement of absolute position in various machines and systems such as wind power and solar plants, material handling equipment, textile machines, packaging plants, rollers, port facilities, printing machine,Motion Control Feedback, Conveyors, Elevator Controls, Machine Control, Food Processing, Process
Controls, Robotics, Material Handling, Textile MachinesWe come to you : Field Service visit for Automated Machinery Users in GCC
✓ Field Service for Troubleshooting of Encoder Faults, Servo Errors, Signal health for : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ Field Service for Diagnosing the Errors & Taking Corrective Steps for fixing interfacing, Parameterisation errors: ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ Field Service Visit for Evaluating the possibility of Modification of Mechanical Arrangment |Installing Upgraded version for : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ We Provide Same Day Field Service to Users in UAE - Abudhabi, Dubai, Sharjah, Ras Al Khaima, UmmAlQuain, Fujairah Oman, Bahrain, Qatar, Kuwait (NextDay) Saudi Arabia (per Visa availability) Indian Subcontinent (5-7Days) for : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6OSend the unit to Our Workshop-for Evaluation | Repair | Programming
✓ Connector Repair Services available for : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ Couplings Design Services & Supply of couplings for : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ Supply of Standard Flange for Mounting this encoder on your machine: ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ Contact us for Ordering Custom made Flange for : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ Contact us for Ordering Cable for Connecting this encoder to Drive Controller : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
✓ We supply Worldwide - USA, Europe (3-4 Days), Oman (NextDay), Bahrain, Qatar, Kuwait, Saudi Arabia (2-3days) Indian Subcontinent (5-7Days) : ARS 60-AAA08192; 103 1 458; ARS-60-AAA 08192;1031 458; ARS60AAA08192; ARS6O
